What files does an eyewear manufacturer need for OEM/ODM development? At minimum, a manufacturer needs enough information to define the frame shape, dimensions, materials, colors, lenses and branding. A complete STEP file is helpful for full custom development, but it is not required for every project.
This matters because eyewear projects arrive at factories in very different forms.
One buyer may already have finished CAD files. Another may only have product renders. A third may send an existing pair of glasses and say:
“Can you keep this fit but redesign the front and temples?”
All three projects can be developed, but they should not follow the same technical file checklist.
The goal is not to prepare as many files as possible.
The goal is to give your eyewear manufacturer enough controlled information to manufacture the product you actually intend to sell.
First, Identify Your Eyewear Development Type
Before preparing files, determine how much of the eyewear product is actually being developed.
| Development Type | What You Are Changing | Files Normally Needed | Development Difficulty |
|---|---|---|---|
| Private Label | Logo, lens color, packaging | Logo artwork, selected model, lens requirement, packaging artwork | Low |
| ODM Modification | Existing frame with changes to colors, lenses, materials or some structures | Reference model, dimensions, modification notes, colors, materials, branding | Medium |
| Full OEM | Completely new frame geometry and components | Concept, technical drawings, CAD/STEP when available, materials, lenses, components, branding | High |
If you are selecting an existing frame and simply adding a logo, creating a complete mechanical STEP file is usually unnecessary.
If you are developing a completely new acetate front, custom hinge position and unique metal temple, however, manufacturing from reference images alone leaves too much room for interpretation.
The rule is simple:
The deeper the structural customization, the more technical information should be confirmed before tooling begins.
For buyers who are still deciding between OEM, ODM and private label development, this should be clarified before investing heavily in technical drawings.
Product Concept and Reference Images
For an early-stage OEM eyewear project, start with a clear visual brief.
Useful files may include:
- Front-view product renders
- Side-view renders
- 45-degree renders
- Hand sketches
- Mood boards
- Existing eyewear used as fit references
- Competitor products used for structural reference
- Notes identifying which features should be retained or changed
Reference images are useful because they explain what the product should look like.
But they do not automatically explain how the product should be manufactured.
For example, your rendering may show a thick acetate temple.
The manufacturer still needs to determine:
- Is the temple 4 mm, 6 mm or 8 mm thick?
- Where should the hinge sit?
- What is the temple opening angle?
- How should the temple transition toward the ear tip?
- Is there a metal core inside?
Those details must eventually be converted into engineering information.
Technical Drawings and Dimensions
A technical drawing removes ambiguity from an eyewear design.
Depending on the frame structure, the drawing should normally identify:
- Horizontal lens width
- Lens height
- Distance between lenses
- Bridge width
- Overall front width
- Temple length
- Frame thickness
- Temple thickness
- Hinge position
- Lens groove or lens mounting structure
- Front curvature where relevant
- Temple opening angle
- Important component dimensions
ISO 8624 defines the spectacle-frame measuring system and standard terminology used for key frame dimensions.
However, a full custom frame normally requires more information than the standard size markings commonly printed inside a temple.
A useful manufacturing principle is:
If changing a dimension could noticeably affect fit, appearance, assembly or component compatibility, that dimension should be defined.
For example, changing the overall front width by 2–3 mm may alter how the frame fits the intended face size.
Changing hinge position by several millimeters can affect temple alignment.
Changing acetate thickness may affect both visual weight and polishing results.
These are not simply cosmetic details.
CAD, 3D and STEP Files
For structurally customized eyewear, 3D files become increasingly useful.
Common files include:
- STEP / STP
- SolidWorks files
- IGES
- STL
- Other compatible CAD formats
STEP files are particularly useful because the ISO 10303 family provides a standardized framework for exchanging product model data between engineering and CAD systems.
However, sending a STEP file does not automatically make a project production-ready.
A CAD model may define geometry but still fail to define:
- Frame material
- Surface finish
- Color
- Critical tolerances
- Logo process
- Lens specifications
- Plating requirements
- Quality standards
For full custom OEM development, a stronger technical package normally combines:
3D geometry + controlled 2D dimensions + written manufacturing specifications.
If you only have renderings or sketches, we can help you transform your concepts into production drawings.
Frame Material Specifications
“Plastic frame” is not a sufficient manufacturing specification.
Neither is “premium material.”
Different eyewear materials require different processing methods and create different structural limitations.
For Acetate Frames
Specify information such as:
- Acetate supplier if already selected
- Sheet reference number
- Color code
- Transparent, solid or tortoise finish
- Laminated construction if required
- Front thickness
- Temple thickness
- Surface finish
If a specific acetate pattern is important to your brand identity, provide the actual sheet code or physical material reference.
A photo is useful for direction but less reliable for production matching.
For Injection-Molded Frames
Specify whether you require:
- TR90
- PC
- Other defined polymers
Material selection affects:
- Tooling
- Wall thickness
- Flexibility
- Weight
- Surface treatment
- Structural design
- Mass-production stability
For this reason, the material should be decided early rather than selected only after the frame shape has been finalized.
For Metal Frames
Define whether you require materials such as:
- Stainless steel
- Titanium
- Aluminum
- Other specified alloys
Also define:
- Wire or profile dimensions
- Plating color
- Matte or polished finish
- Brushed surface
- Gloss level
The manufacturer can recommend the material, but the approved material should ultimately become part of the production specification.
Frame and Component Colors
Avoid relying only on descriptions such as:
“Champagne gold.”
“Dark tortoise.”
“Vintage brown.”
“Transparent smoke.”
These descriptions are subjective.
One buyer’s champagne gold may look yellow, while another buyer may expect a pale rose-gold tone.
Use controlled color references whenever possible.
Examples include:
- Pantone code
- Physical color chip
- Acetate sheet reference
- Plating sample
- Approved previous product
- Material swatch
Pantone provides standardized color communication systems commonly used between brands, designers and manufacturers.
However, Pantone should often be treated as a target reference rather than an absolute guarantee for every eyewear material.
Transparent acetate, metallic plating and polished surfaces can visually react differently from a printed Pantone chip.
The best practice is therefore:
Color reference first, physical sample approval second.
Lens Specifications
“Grey polarized lens” is still incomplete.
Lens requirements should normally cover several separate decisions.
| Item | Example Requirement |
|---|---|
| Lens Material | TAC / PC / Nylon / CR-39 |
| Lens Color | Grey / Brown / Green / Custom |
| Function | Plano / Polarized / Photochromic / Blue-light filtering |
| UV Requirement | Typically, it is UV400. |
| Surface | Solid / Gradient / Mirror |
| Coating | Hard coating / AR / Hydrophobic if required |
| Base Curve | According to frame construction |
| Thickness | Defined where structurally important |
| Compliance | Target market and applicable standard |
For general-use sunglasses, ISO 12312-1 covers sunglasses intended for protection against solar radiation.
The target market also matters:
Define your target sales market before finalizing the lens structure.
If compliance requirements are only discovered after sample approval, changing the lens material, thickness or frame structure can cause avoidable redevelopment.
Logo and Branding Files
For production, vector artwork is normally preferred.
Recommended file formats include:
- AI
- EPS
- SVG
- Vector PDF
You should also specify:
- Logo width
- Logo height if critical
- Logo position
- Inside or outside temple
- Lens or frame application
- Logo color
- Logo process
For example:
Left temple outside: 18 mm silver hot-stamped logo.
This is far more useful than:
“Put our logo on the side.”
Different logo processes can also produce different visual effects.
Depending on the product, possible processes may include:
- Laser engraving
- Silk-screen printing
- Hot stamping
- Metal logo application
- Lens printing
A PNG file can help the factory understand the visual identity, but it should not replace vector production artwork where accurate logo reproduction is required.
Hardware and Component Specifications
Small components can cause major development problems when they are left undefined.
Depending on the frame, confirm:
- Hinge type
- Hinge dimensions
- Screw specification
- Temple core wire
- Nose pads
- Nose-pad arms
- End pieces
- Decorative metal parts
- Custom emblems
- Lens mounting components
If your manufacturer already has a suitable hinge or component in its existing component library, using an existing part can reduce development complexity.
If a component must be completely customized, drawings or CAD files may be necessary.
A visually attractive frame front does not solve the problem if the hinge cannot fit the temple construction reliably.
Packaging and Label Artwork
Packaging does not necessarily need to be finalized at the beginning of eyewear development.
However, the packaging direction should be discussed before bulk production is complete.
Typical packaging files include:
- Eyewear case artwork
- Cleaning cloth logo
- Pouch artwork
- Retail box artwork
- Barcode
- Product label
- Model number
- Color code
- Care instructions
- Required market information
For custom boxes, ask the packaging supplier for the final dieline before preparing print-ready artwork.
Do not ask your graphic designer to build packaging around estimated dimensions.
If the final case or box dimensions change, the artwork may need to be rebuilt.
For products sold in regulated markets, required product information should also be confirmed before packaging is printed.
Quality Standards and Golden Samples
Quality standards should be discussed during development rather than only before shipment.
For sunglasses and specialized protective eyewear, different requirements can apply depending on the product type and destination market.
A useful development brief should therefore identify:
Target Market: USA / EU / UK / Australia / Other
Required Testing or Compliance: To be confirmed before sample approval.
After development, both buyer and manufacturer should establish a golden sample.
A golden sample is the physical product approved as the reference for mass production.
It can be used to control:
- Frame shape
- Dimensions
- Fit
- Color
- Surface finish
- Lens
- Logo
- Hardware
- Assembly
- Packaging
This is particularly important because written descriptions such as “good polishing” or “same tortoise color” are subjective.
A physical approved sample creates a much clearer production reference.
What If You Don’t Have All These Files?
You can still begin an OEM/ODM eyewear project.
Many buyers, especially new brands, do not start with a complete engineering package.
A project may follow this route:

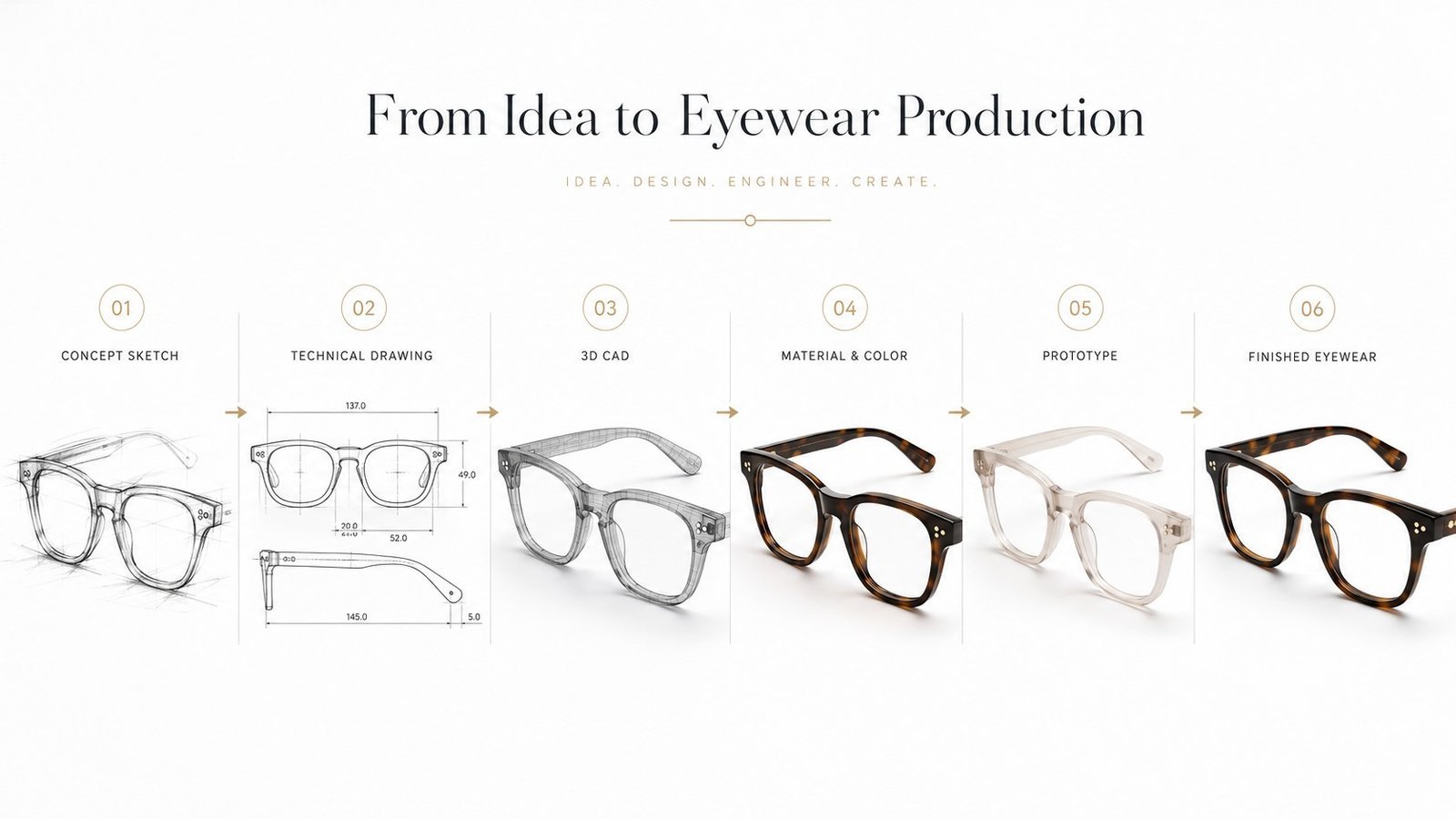

Sketch → Engineering Drawing → 3D Model → Prototype → Approved Sample
Or:
Existing Frame → Modification Requirements → Revised Sample → Production
Or even:
Render → Manufacturer Feasibility Review → Technical Drawing → Sample
The key issue is not whether the buyer has every file from day one.
The key issue is whether missing decisions are identified before tooling and production.
Less technical information from the buyer means more engineering decisions must be made during development.
That is manageable as long as those decisions are documented and approved.
Minimum File Package for an Eyewear OEM Project
You do not need twenty technical files before sending your first inquiry.
For an initial manufacturing review, this package is usually enough.
| Required Information | Minimum Acceptable Input |
|---|---|
| Product Shape | Sketch, render or reference images |
| Dimensions | Main dimensions or reference sample |
| Frame Material | Desired material direction |
| Frame Color | Color reference |
| Lens | Material + color + required function |
| Branding | Logo file + preferred position |
| Quantity | Estimated quantity per model/color |
| Market | Country or sales region |
| Packaging | Standard or customized |
| CAD | Optional at inquiry stage; useful for full OEM |
This information allows the eyewear manufacturer to evaluate:
- Manufacturing method
- Material feasibility
- Tooling requirements
- Component requirements
- Development complexity
- Missing technical information
Only after those issues are understood does a quotation become commercially meaningful.
What Happens After You Submit Your Files?
A properly managed custom eyewear project normally moves through several stages.
Step 1: Manufacturability Review
The engineering team reviews whether the requested:
- Structure
- Material
- Dimensions
- Lens
- Hardware
- Components
can be manufactured reliably.
The goal at this stage is not simply to say “yes.”
The goal is to identify potential problems before tooling begins.
Step 2: Missing Information Review
The manufacturer should identify unresolved information such as:
- Missing dimensions
- Undefined materials
- Unconfirmed colors
- Lens requirements
- Hardware selection
- Logo process
This reduces repeated revisions later.
Step 3: Technical Drawing and 3D Confirmation
For full OEM development, the concept may need to be converted into:
- Engineering drawings
- CAD files
- 3D models
- Component drawings
The buyer should review the engineering result before production tooling begins.
Step 4: Material and Component Confirmation
The project should then lock:
- Frame material
- Lens
- Hinges
- Colors
- Plating
- Logo process
- Other hardware
Step 5: Prototype or Development Sample
A physical sample allows the buyer to evaluate factors that cannot be confirmed from a render alone.
These include:
- Actual fit
- Frame weight
- Hinge resistance
- Surface gloss
- Material feel
- Lens appearance
- Color under real lighting
- Overall proportions
Step 6: Buyer Approval and Revision
Any modifications should be recorded clearly.
Avoid relying only on fragmented WhatsApp comments such as:
“Make temple slightly thinner.”
“Use the other gold.”
“Same as last photo.”
Instead, consolidate revisions into one controlled approval document.
Step 7: Golden Sample and Production Release
Once the sample and technical specification are approved, the golden sample becomes the physical production reference.
Only then should bulk production proceed.
This workflow may appear slower than opening tooling immediately from a render.
In reality, it reduces the much more expensive risk of correcting a product after molds or bulk production are already completed.
FAQ
Do I need a CAD file to contact an eyewear manufacturer?
No.
CAD is useful for full OEM development, but it is not required for initial evaluation.
You can begin with renders, drawings, reference images or a physical frame.
We only have product renders. Can you help develop the frame?
Yes.
The renders can be used to understand the intended design.
The manufacturer can then help define:
- Dimensions
- Materials
- Structure
- Components
- Manufacturing details
before sample production.
Can I send a physical pair of glasses instead of CAD?
Yes.
A physical sample can be particularly useful for communicating:
- Fit
- Front width
- Temple length
- Weight
- Curvature
- Construction
However, clearly mark what you want to keep and what you want to change.
For example:
Keep: fit and overall width
Change: front shape, temple decoration and lens color
This prevents the reference frame from being misunderstood as a request for direct duplication.
Can an eyewear manufacturer change my design if something cannot be produced?
An experienced engineering team may recommend modifications when a design creates manufacturing problems.
However, those changes should be explained and submitted for buyer approval.
A supplier should not silently alter important design features simply because they are easier to produce.
Who owns the CAD files and molds after development?
Do not assume ownership automatically.
Before paying tooling or development charges, clarify:
- Mold ownership
- CAD ownership
- Design confidentiality
- Exclusivity
- Whether tooling can be used for other customers
- What happens to the tooling if cooperation ends
These terms are commercial matters and should be agreed between buyer and supplier.
Start Your OEM/ODM Eyewear Project
You do not need a perfect engineering package before contacting an eyewear manufacturer.
You need enough information for the manufacturer to understand three things:
What has already been decided.
What can still be changed.
What requires engineering development.
If you already have complete CAD and technical drawings, send them for manufacturability review.
If you only have sketches, product renders or a physical reference frame, send those instead.
For the fastest initial evaluation, prepare these six items:
- Product images, renders or sketches
- Approximate frame dimensions
- Preferred frame material
- Lens requirement
- Logo file
- Target quantity and sales market
Then ask your supplier to provide:
- A manufacturability review
- A list of missing specifications
- A recommended OEM/ODM development route
This gives you much more useful information than asking only:
“How much does this frame cost?”
Because in custom eyewear manufacturing, an accurate quotation starts with a product specification that is clear enough to manufacture.
If you are preparing a new collection, send your concept drawings, renders, CAD files or existing frame references to the Finewell team for an initial OEM/ODM review.
We can help determine what information is already sufficient, what still needs engineering work, and which development route is more suitable for your budget, MOQ and launch schedule.
